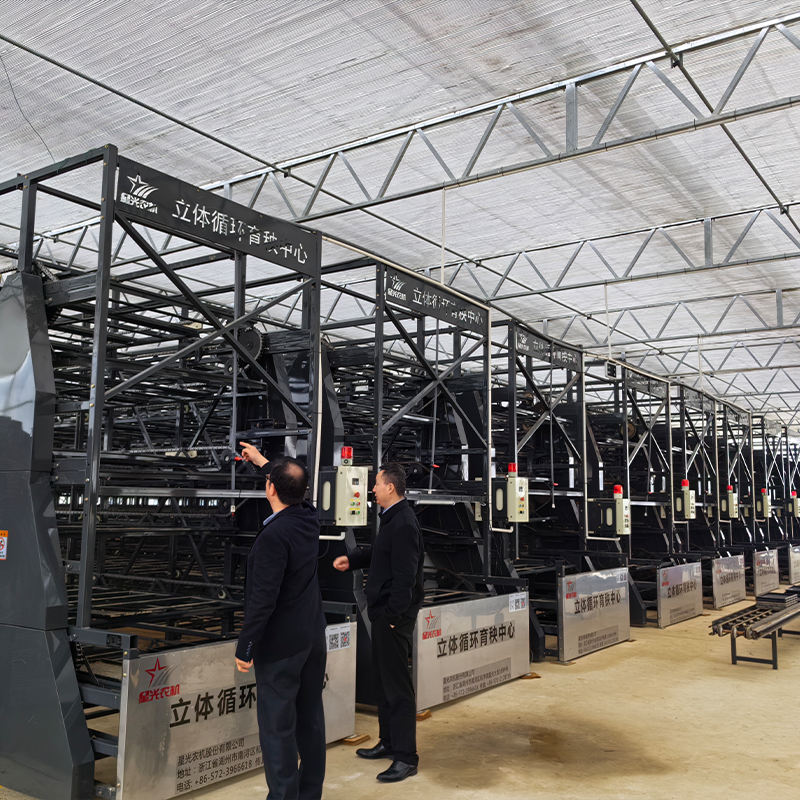

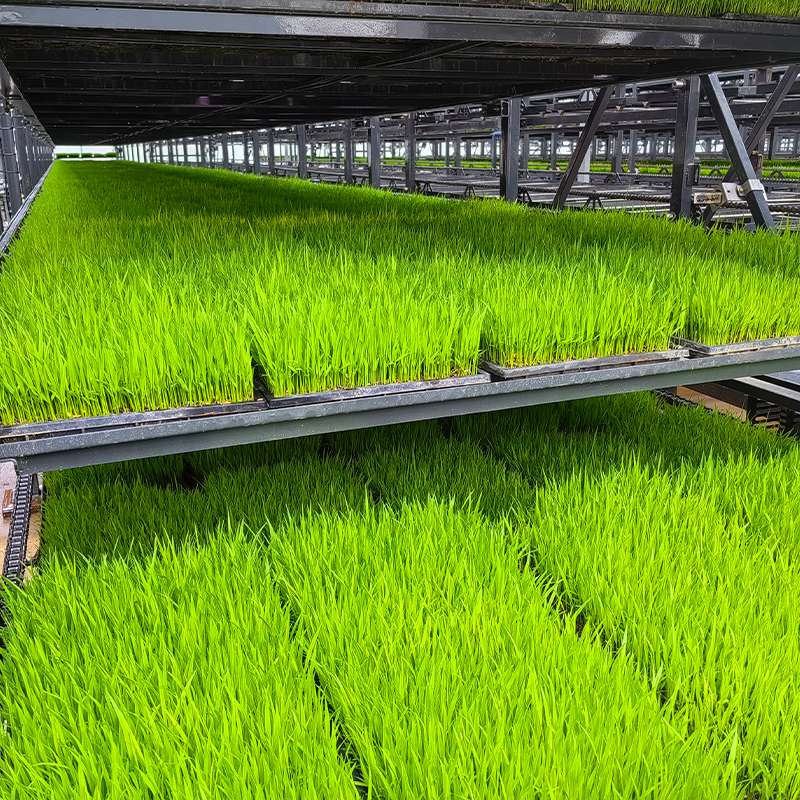

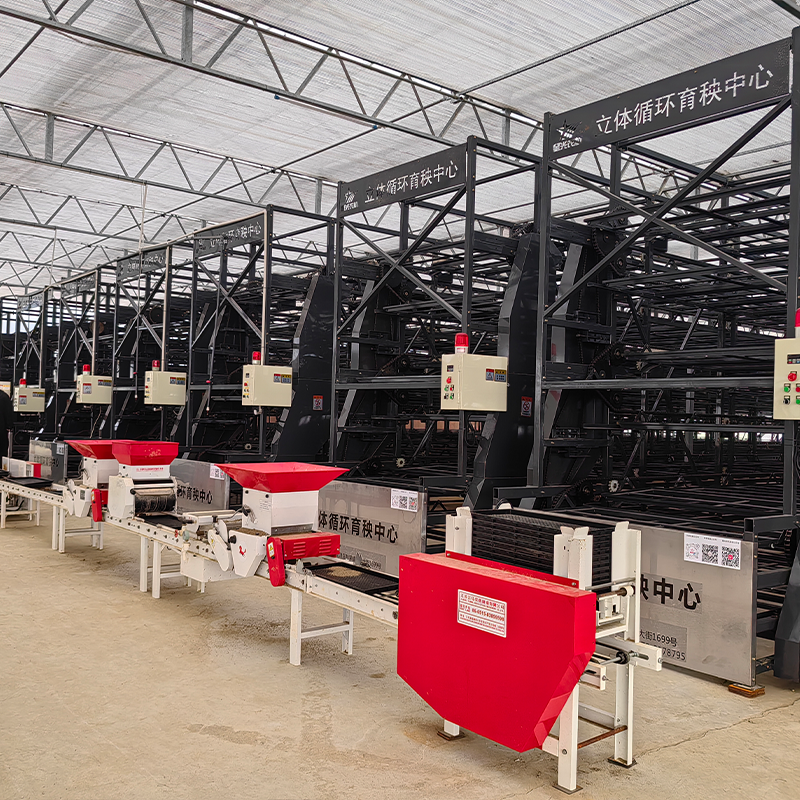

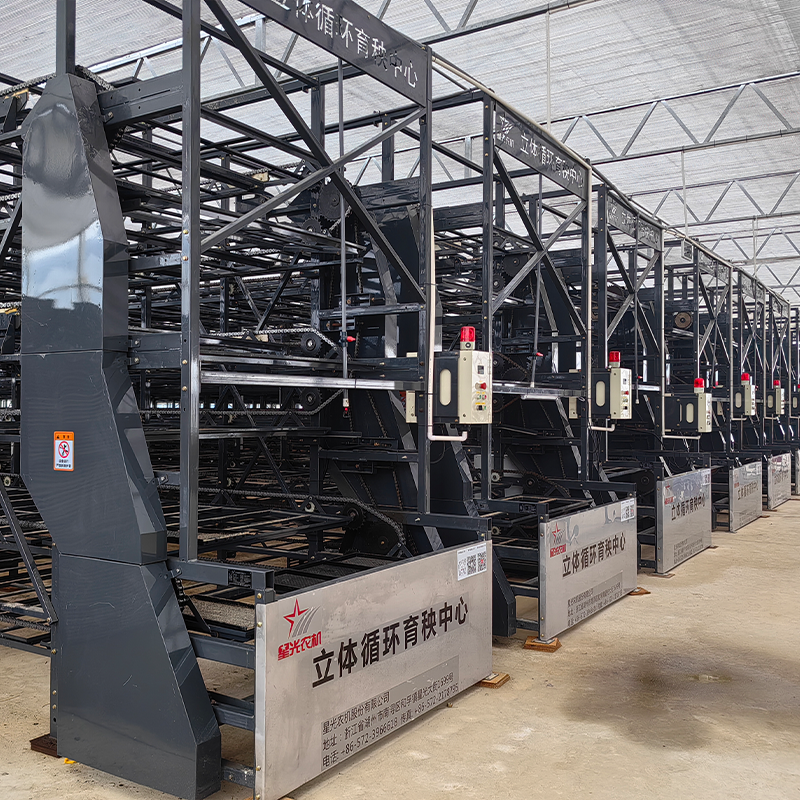

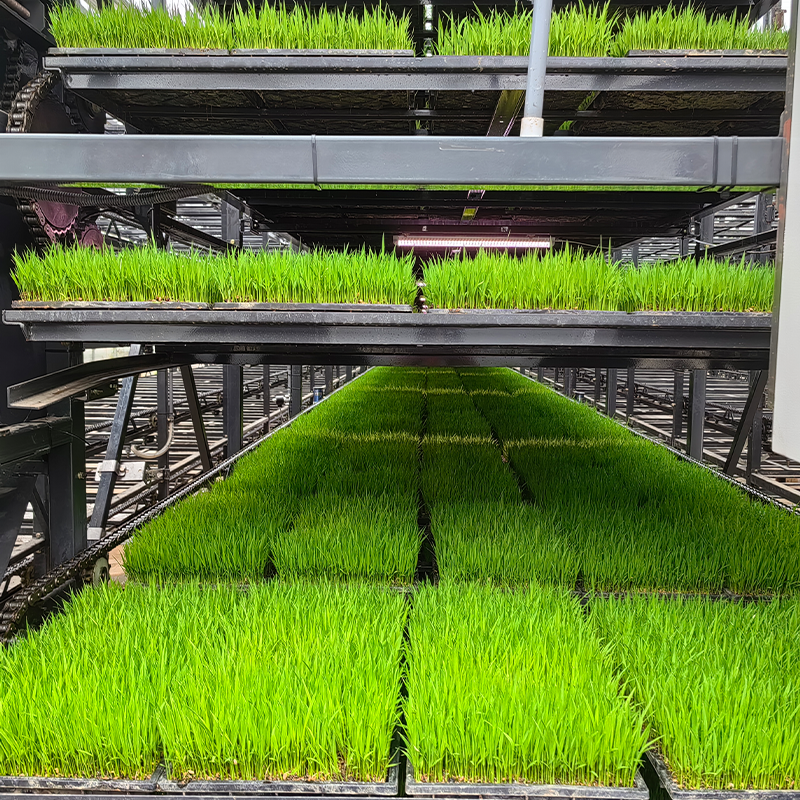

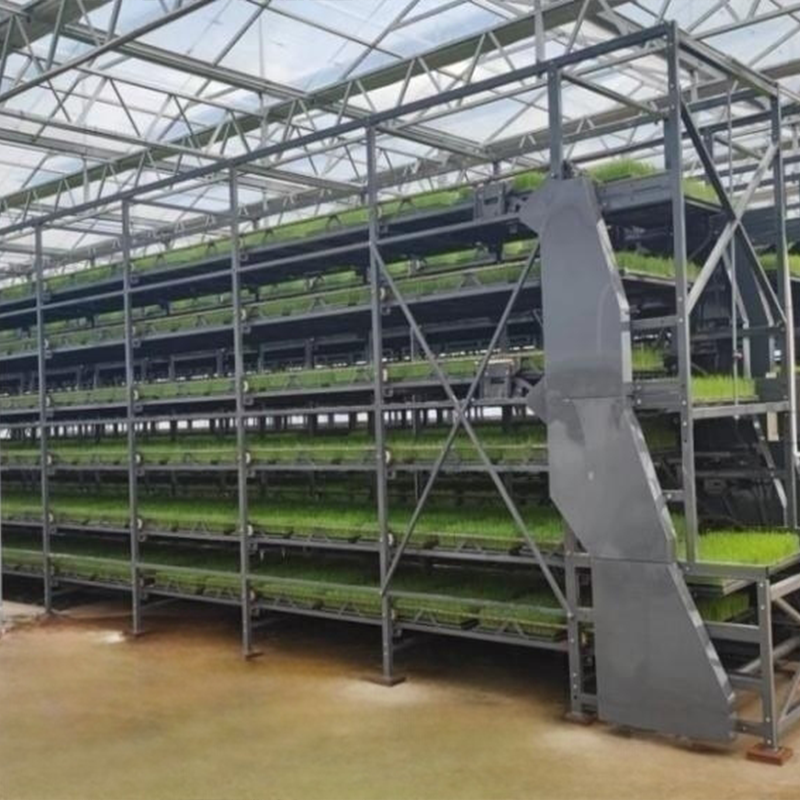

| 2SY-1070(2SYZ-1070) Vertical Circulation Seedling Raising Equipment | |||
| Performance Profile | |||
| ●Small footprint,circulation operation, automatic spraying of water and fertilizer drugs; ● Adopt intelligent automated manufacturing equipment to improve the precision of parts and product assembly, greatly improving the quality of the whole machine and mechanical stability; ● Adopt unique multi-layer parallel design, universal mobile seedling tray, built-in spray system, intelligent control cabinet design, making the cultivation density higher, less space occupation, 9 inch plate and 7 inch plate universal.The spraying of water and fertilizer is more uniform, the seedling rearing performance is excellent, which has become the preferred model for the majority of users. | |||
| Item | Unit | Technical Specification | |
| Product Model | / | 2SY-1070(Standard)/2SYZ-1070(Smart) | |
| Structural Type(V/Parallel/H/) | / | Parallel | |
| Engine | Model | / | YVF2-90L-4 |
| Structural Style | / | Closed | |
| Rated Power | kw | 1.5 | |
| Rated Speed | r/min | 1436 | |
| Overall Dimension(L×W×H) | mm | 26830×2340×3405 | |
| Cycle Speed | m/min | 0.05˜2.6（Variable frequency adjustable speed） | |
| Cycle Period(50Hz) | min | 60 | |
| Layer Height | mm | 450˜500 | |
| Layers | / | 6 | |
| Tray Size | mm | 300×600×30/250×600×30 | |
| Tray Number | pc | 1070/1284 | |
| Spray device | Sprayer Type | / | Atomizing micronozzle |
| Sprayer Number | pc | 6 | |
