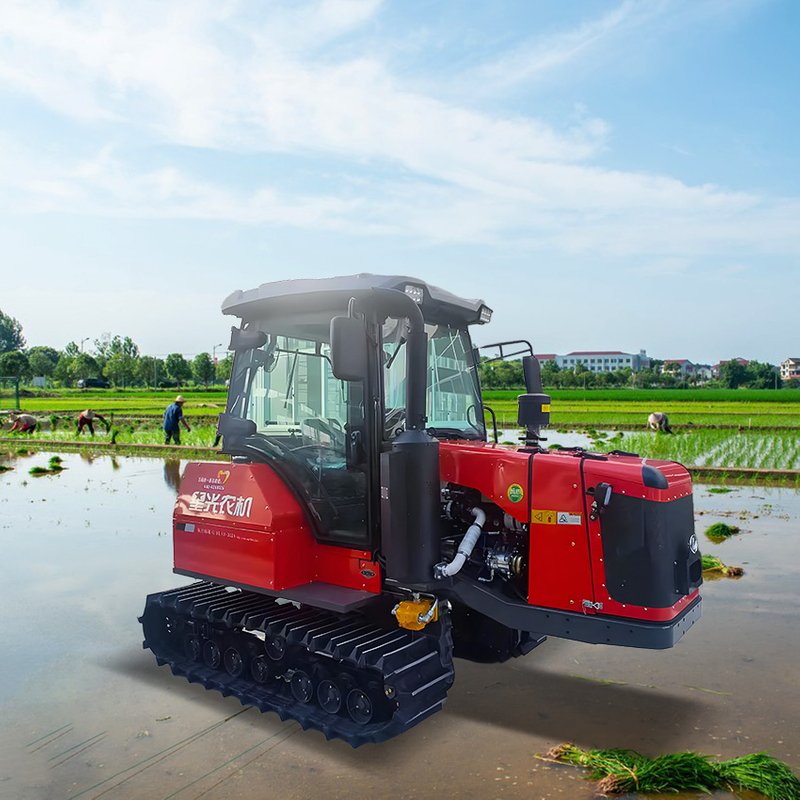

| XG1002-B Tracked Tractor | |||||
| Performance Introduction | Technical Specification | ||||
| 1. XG1002-B tracked tractor is a new high-horsepower tractor with continuously variable speed and full hydraulic two-side drive, which can turn 360° in place; The track grounding ratio is small, and the degree of compaction and damage to farmland is light; | Item | Unit | Specification | ||
| Product Model | / | XG1002-B | |||
| Overall Dimension | mm | 3800×1700×2460 | |||
| Engine | Engine manufacturers | / | Xinchai | ||
| Structural Type | / | 4-cylinder 4-stroke | |||
| 2. It has strong adhesion and greater traction, which can adapt to heavy-duty operations, and has good off-road performance in wet mud or harsh environments, especially suitable for operations in southern paddy fields; | Rated Power | kw | 73.5 | ||
| Rated Speed | r/min | 2400 | |||
| Complete Machine Weight | kg | 2650 | |||
| Min. Ground Clearance | mm | 520 | |||
| 3. It is not only suitable for rotary tillage operations in water and dry fields, but also can be equipped with a variety of agricultural machinery such as stubble removal, sowing, ditching, fertilization, etc., to achieve multiple uses of one machine. | Rubber Track | / | 90MM×56×450/500MM | ||
| Track Effective Ground Length | mm | 1495 | |||
| Gauge | mm | 1200 | |||
| Minimum Turning Circle Radius | mm | 1300 | |||
| Starting Method | / | Electric start | |||
| Clutch Type | / | Friction clutch | |||
| Main Features | Brake | / | Wet friction plates | ||
| 1. Equipped with 100hp engine, HST, and the steering wheel can be automatically returned to position. | Operation Method | / | Steering wheel control | ||
| Rotary Tiller | Width | mm | 2300 | ||
| 2. Independent control of the drive on both sides, differential steering. | Plough Deepth | mm | Dry tillage: 8~16; water tillage: 10~18 | ||
| 3. The motor and the reducer are integrated to make the structure more compact. | Connection Method | / | Monolithic | ||
| Transmission Type | / | Gear transmission | |||
| 4. The universal drive shaft transmits power makes the whole vehicle vibrates less and the comfort is stronger. | Rotary Blade | Rotary Speed | r/min | 262/350 | |
| Maximum Swing Radius | mm | 245 | |||
| 5.Using 500mm crawler, the machine ground specific pressure is small. | Blade Quantity | piece | 68 | ||
| 6. Suspension frame double cylinder jacking system, hydraulic system pressure is more stable. | Work Speed | m/s | 0～10 | ||
| Fertilization Plant | / | Optional | |||
| 7. The removable lifting and suspension mechanism can be equipped with a variety of agricultural machinery such as rotary tillage, seeding, ploughing, and small dozer shovel. | Fuel Consumption | kg/hm2 | ≤32 | ||
