● Thinker 3WZD-200 intelligent orchard plant protection machine is a newly developed remote control plant protection machine, which has a hybrid power system;
● Its main features: high efficiency, safety and stability, competent for a variety of complex working environments.

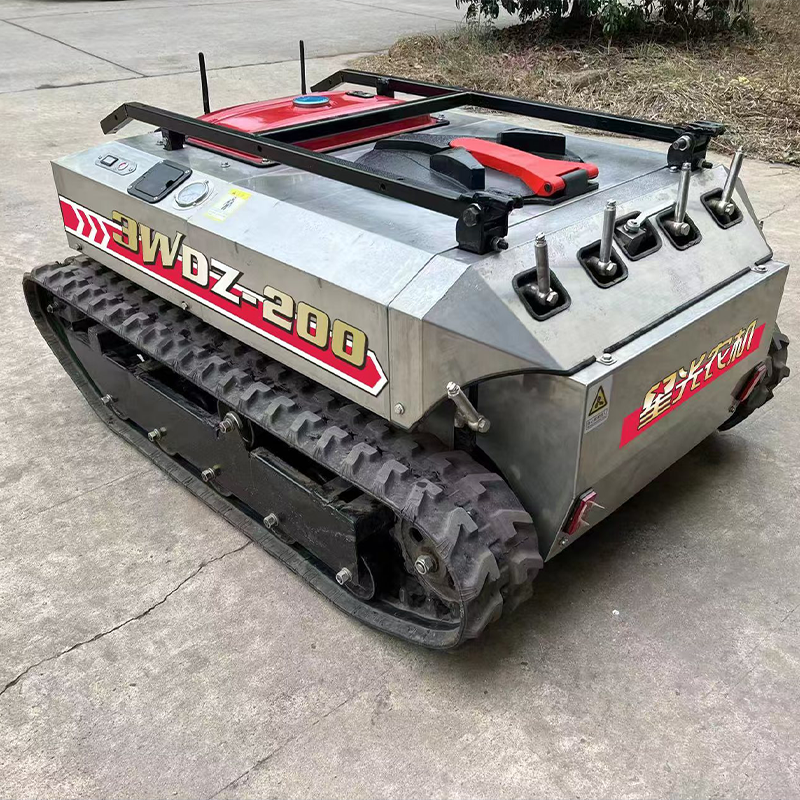

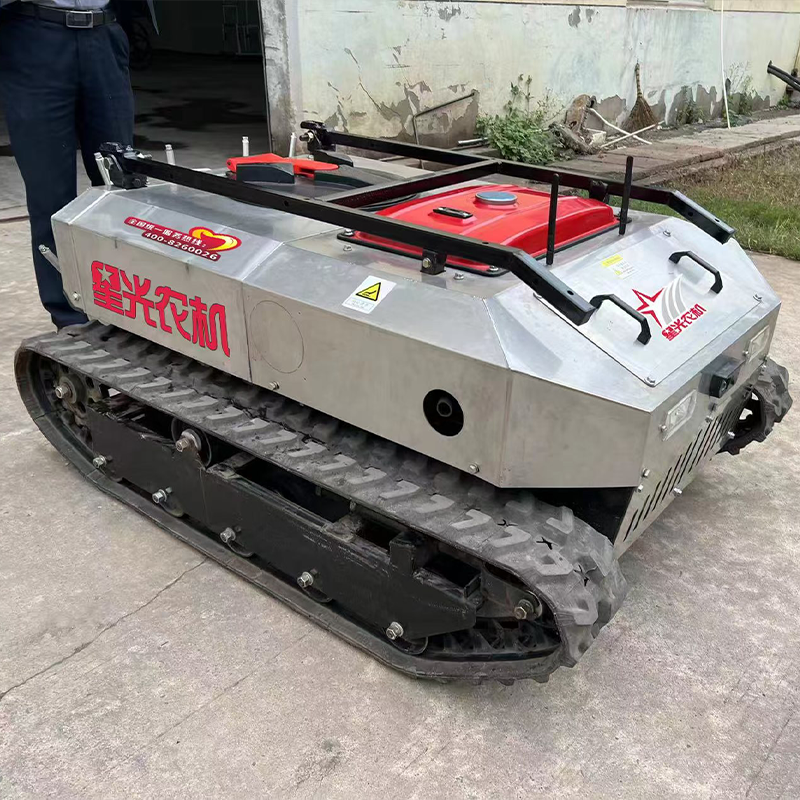

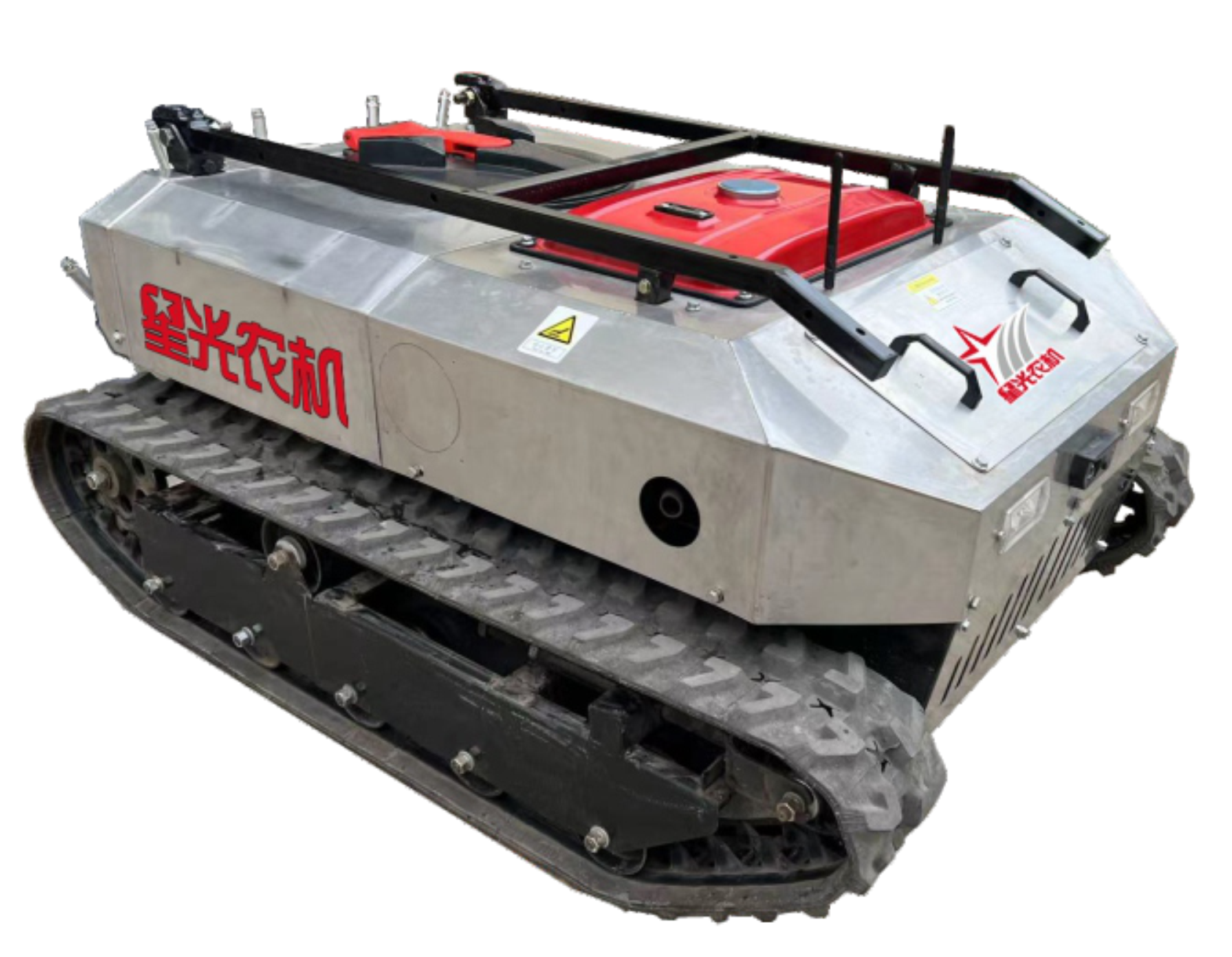

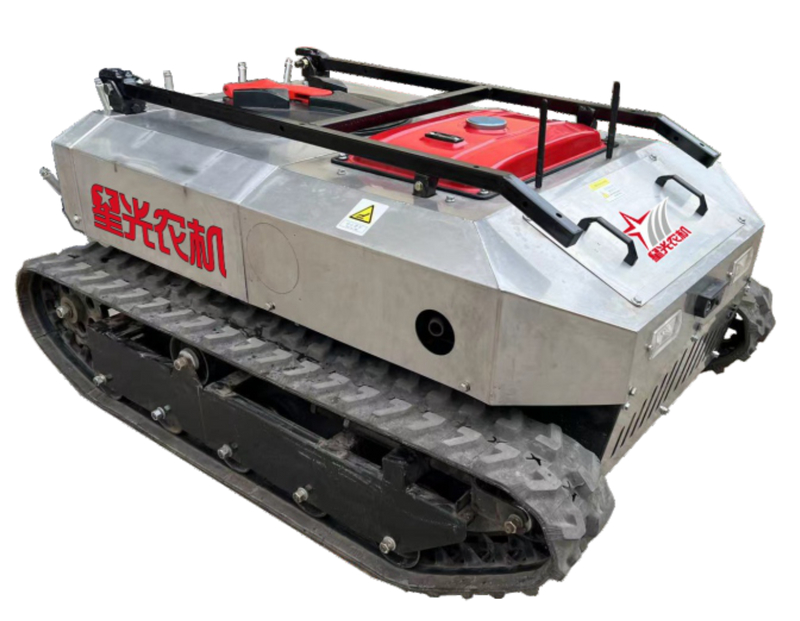

3WZD-200 Intelligent Orchard Plant Protection Machine
Technical Specifications | |||
Item | Unit | Description | |
Complete Machine | Model | / | 3WZD-200 |
Overall Dimension ( L x W x H) | mm | 1540 × 1050 × 740 | |
Structure | / | Crawler Type Self-propelled (Remote Control) | |
Steering Method | / | Differential Steering | |
Working Pressure | Mpa | 8~12 | |
Spraying Radius | m | 12 | |
Pesticides Tank Capacity | L | 200 | |
Max. Running Speed | m/s | 1.2 | |
Max. Working Slope | ° | 30° | |
Generator Set Type | / | Gasoline Engine Generator Set | |
Output Power of Generator Set | kw | 5 | |
Output Voltage of Generator Set | v | DC60 | |
Liquid Pump Structure | / | Piston Pump | |
Liquid Pump Flow Rate | L/min | 24 | |
Liquid Pump Rated Pressure | Mpa | 15 | |
Spraying Nozzle Number | / | 6 | |
Spraying Nozzle Type | / | Fan shaped（40°45°65°80°） | |
Min. Ground Clearance（ Self-propelled） | mm | 150 | |
Brake Type（ Self-propelled） | / | Electronic Brake | |
Remote Controller Model | / | HDJ-200-XX | |
Remote Control Distance | m | ≤200 | |
Power | Name | / | Permanent Magnet Brushless DC Motor |
Structure | / | Low Voltage DC Motor | |
Rated Power | kw | 1.2 | |
Battery | Type | / | Lead-acid Cell |
Voltage | V | 60 | |
Volume | Ah | 20 | |
