| Quantity: | |
|---|---|
| Cotton Harvester | |||||||||

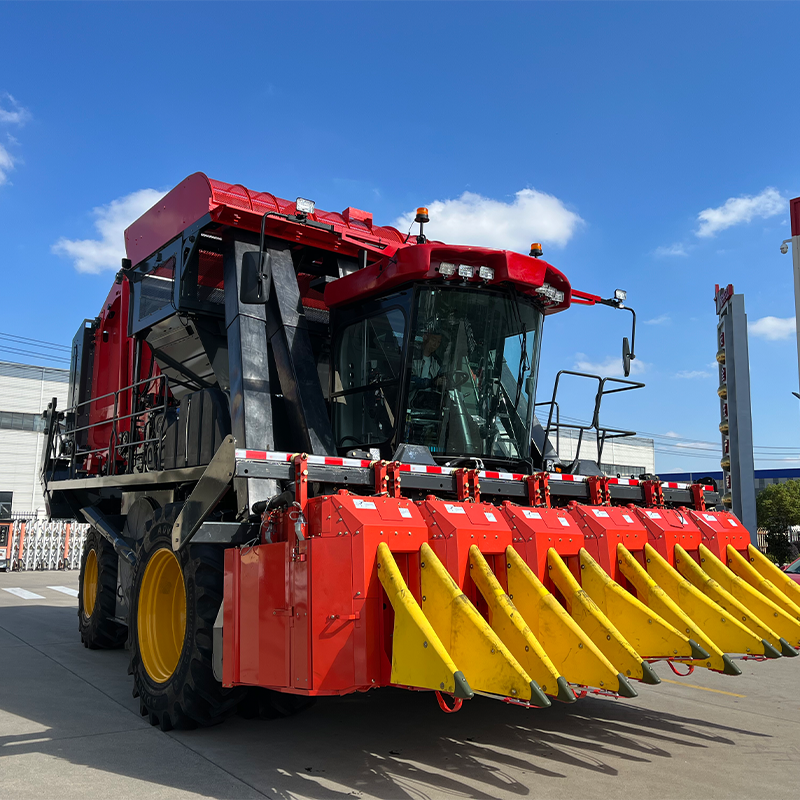

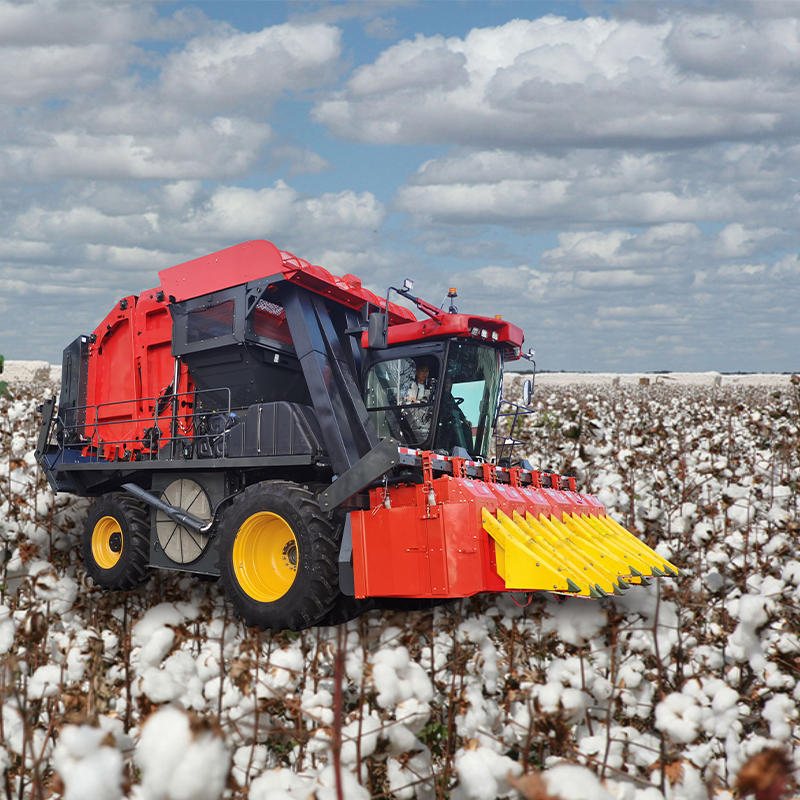

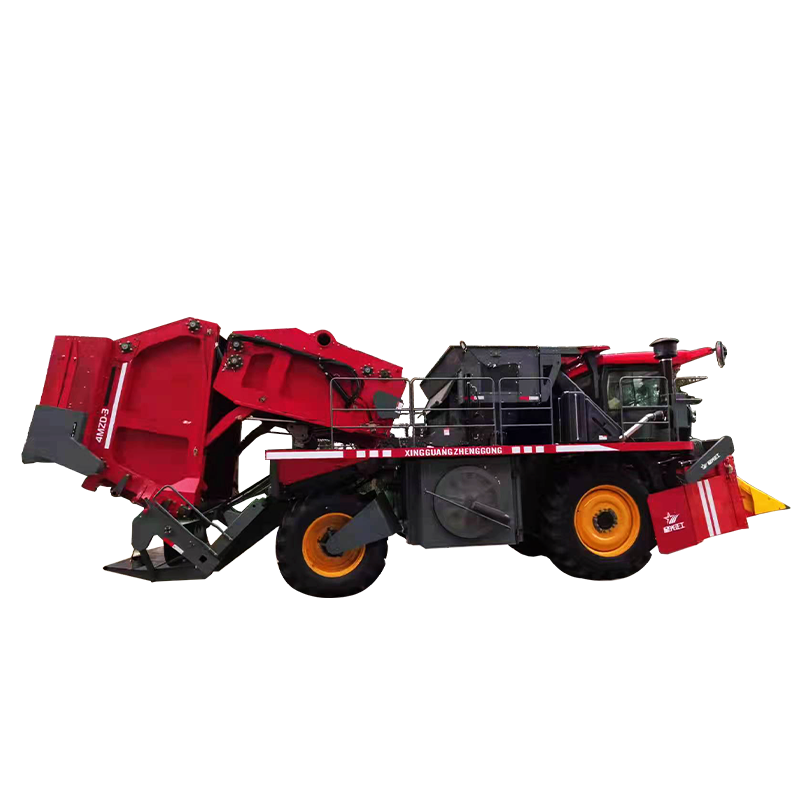

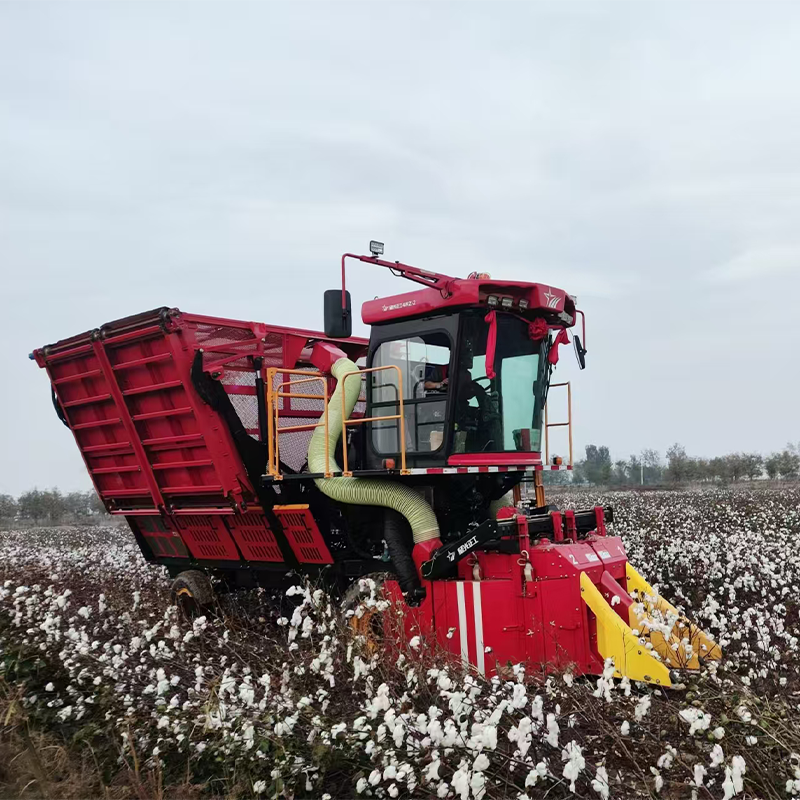

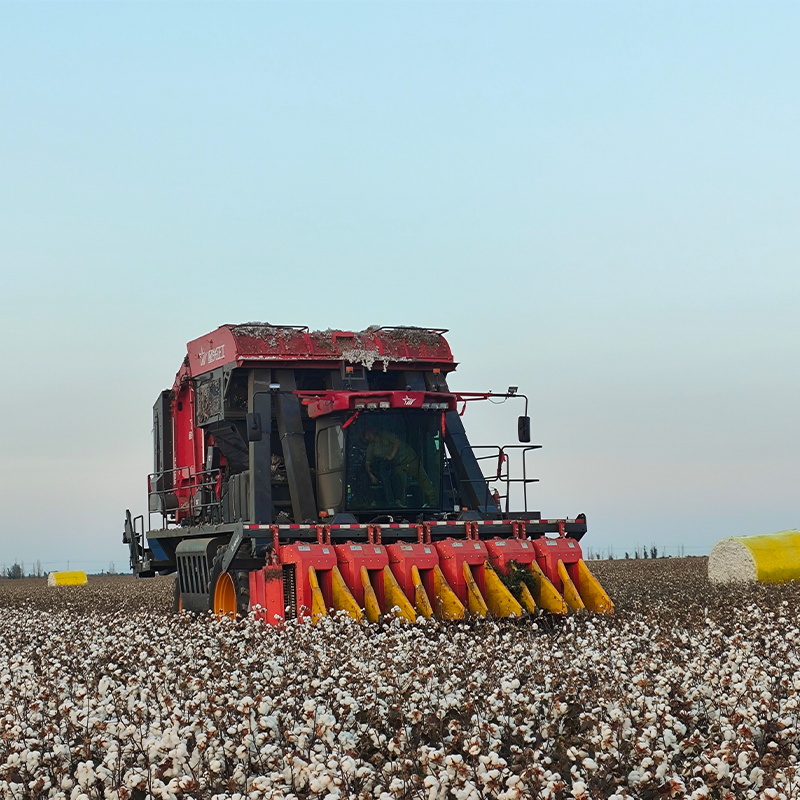

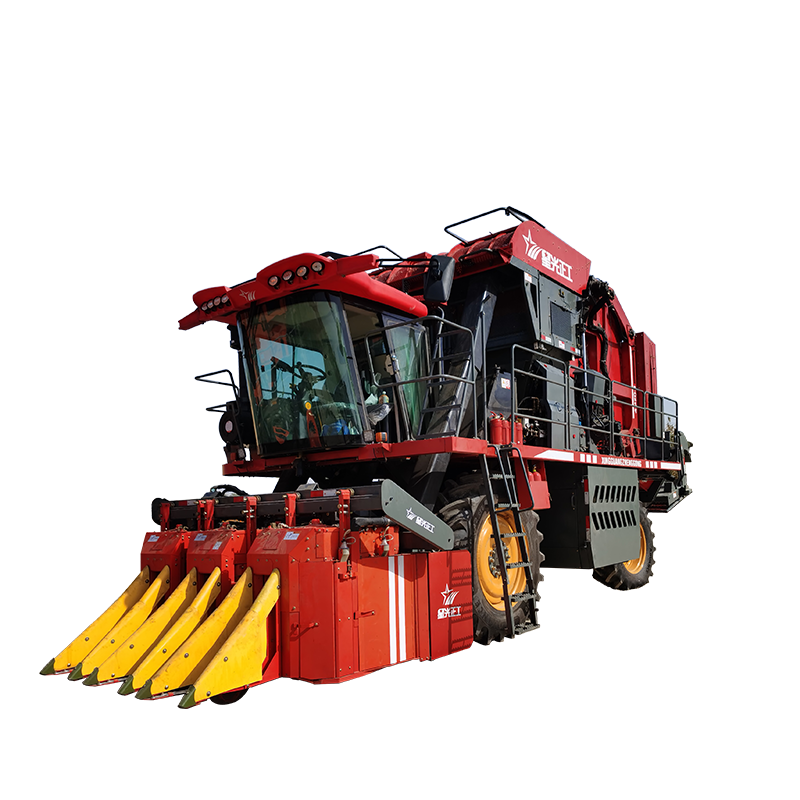

| Performance Introduction Cotton picker with two/three/four/six rows of picking head, high efficiency and low energy consumption; full hydraulic power output, automatic control of operating system; combination of imitation automatic and manual control; automation of cotton picking status; simple operation, touch screen control and monitoring; row spacing can be fine-tuned, high net picking rate; horizontal cotton picking and harvesting table; easy to operate and maintain. Main Features The 4MZ-2/ 4MZ-3/4MZ-4/4MZ-6 cotton picker uses a unique front and rear dual drum arrangement, and 4MZ-2 can harvest different distance cotton, such as 45 ,60 ,76 ,90 rows; After the drum primary harvest, the drum fine harvest, the picking head with unique curving design of picking ingot, so that the height range of picking cotton plant is wider, the picking rate is higher, the picking effect is close to manual picking cotton; With a unique engine rear design, no need to balance the weight of the picking table, with good operational stability; At the same time, provide large space for cleaning and maintenance, easy to operate and maintain; -Aluminum alloy fan, light weight, large air volume and low noise; Full hydraulic drive, small vibration, more stable operation, can effectively prevent the fan instant stop or speed reduction caused by blockage phenomenon; Cotton picker adopts the combination of electrical control and hydraulic transmission, through the PLC automatic control system, the operation is easier and more convenient, the operation steps are more optimized, and the safety performance is better; Double- chamber water tank structure, one chamber loaded with water, one chamber loaded with antifreeze, can be automatically switched in low temperature environment, effectively prevent water freezing crack. | |||||||||
| Technical Specification of Cotton Harvester | |||||||||
| Item | Unit | Description | |||||||
| Complete Machine | Model | / | 4MZ-2 | 4MZ-3 | 4MZ-4 | 4MZ-3D | 4MZD-6 | ||
| Overall Dimension( L x W x H) | mm | 8275×3375×4100 | 8690×3450×4050 | 8860×4500×4560 | 10000×4100×4950 | 10200×5357×5360 | |||
Wheelbase of Steering Axle | mm | 1363 | 2280 | 2280 | 2150 | 2280 | |||
Complete machine weight | kg | 9000 | 13000 | 16000 | 24050 | 33000 | |||
| Cotton Unloading Height | mm | 3800 | 1870-3870 | 2110-3780 | |||||
| Engine | Model | / | WP3.6NG140A0 | QSB5.9-C210-30 | QSC8.9-C325-33 | QSL8.9-C360-32 | M15PlusCSIV64C | ||
| Type | / | Four Cylinders, Water cooling, Turbo, 4 Strokes | Six Cylinders, Air cooling, Turbo, 4 Strokes | Six Cylinders, Air cooling, Turbo, 4 Strokes | Six Cylinders, Air cooling, Turbo, 4 Strokes | Six Cylinders, Air cooling, Turbo, 4 Strokes | |||
| Total displacement | L | 3.58 | 5.9 | 8.9 | 8.9 | 15 | |||
| Cylinder Diameter x Stroke | mm | 100×114 | 102×120 | 114×145 | 114*145 | ||||
Standard Power | KW | 103 | 154 | 242 | 264 | 478 | |||
| Standard Speed | r/min | 2400 | 2200 | 2200 | 1800 | 2100 | |||
| Gearbox | Model | / | Poclain MS18 | NY1000/II-WX Hydraulic drive | Poclain MS35 | CMBSX-00-00 Hydraulic drive | CMBSX00-00 | ||
| Gears | Two gears | Two gears | Two gears | Two gears | Two gears | ||||
| Driving Speed | First Gear (CVT) for Cotton picking | Km/h | 0-7.5 | 0-7.5 | 0-7.5 | 0-7.5 | 0-7.5 | ||
| Second Gear (CVT) for Transportation | Km/h | 0-20 | 0-25 | 0-25 | 0-25 | 0-25 | |||
| Cotton Picker Header | Seat tube num. of front picker | / | 12 | 12 | 12 | 16 | 16 | ||
| Seat tube num. of rear picker | 12 | 12 | 12 | 12 | 12 | ||||
| Picker num. of Each seat Tube | / | 18 | 18 | 18 | 20 | 20 | |||
| Total picker num. of each row | / | 432 | 432 | 432 | 560 | 560 | |||
| / | mm | 45/60/76/90 | 760 | 760/900 | 760 | 760 | |||
| m³ | 15 | 25 | 25 | 7.3 | |||||
| Cotton Tank | Capacity | Kg | 1500 Unginned cotton) | 2650 Unginned cotton) | 2850 Unginned cotton) | 773 Unginned cotton) | 2200 | ||
| Oil Tank | Volume | L | 560 | 380 | 600 | 680 | 1200 | ||
