| Quantity: | |
|---|---|
| Excellent Passing Performance ● Adopt turbocharged engine with stronger power & low fuel consumption and better in economy. ● Hydraulic stepless speed adjustable, hydraulic steering, special gearbox for head-feeding, easy operation. Outstanding Operation Performance ● Domestic initiation for major diameter double threshing cylinders, features high efficiency, low energy consumption and high adaptability. ● Ultra wide intermediate conveying groove with low speed, low noise and clog-preventing ● 1080mm Ultra wide cleaning room, fan speed adjustable, features low loss rate & high cleanliness. | |||
| Technical Specification | |||
| Item | Unit | Specification | |

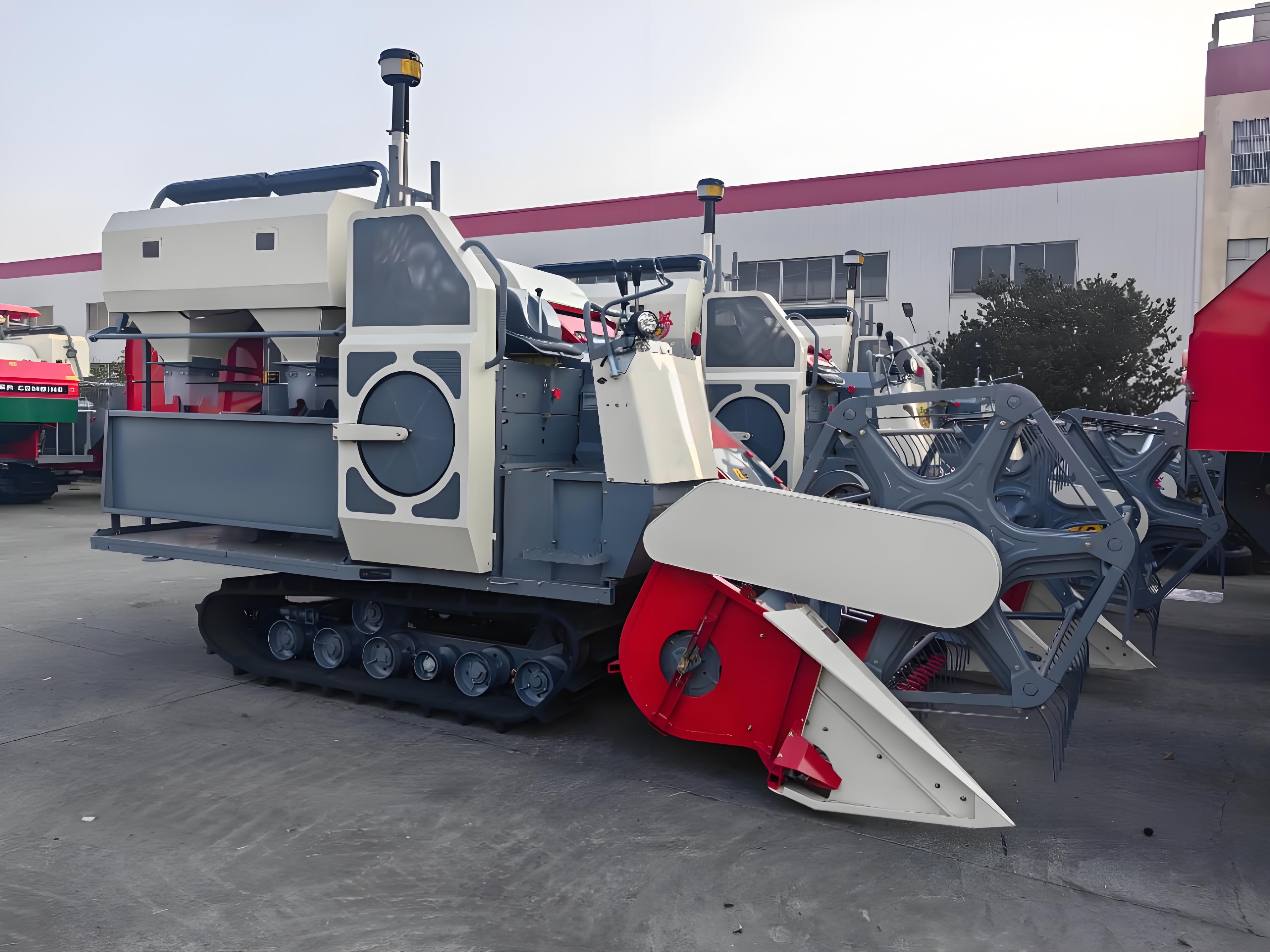

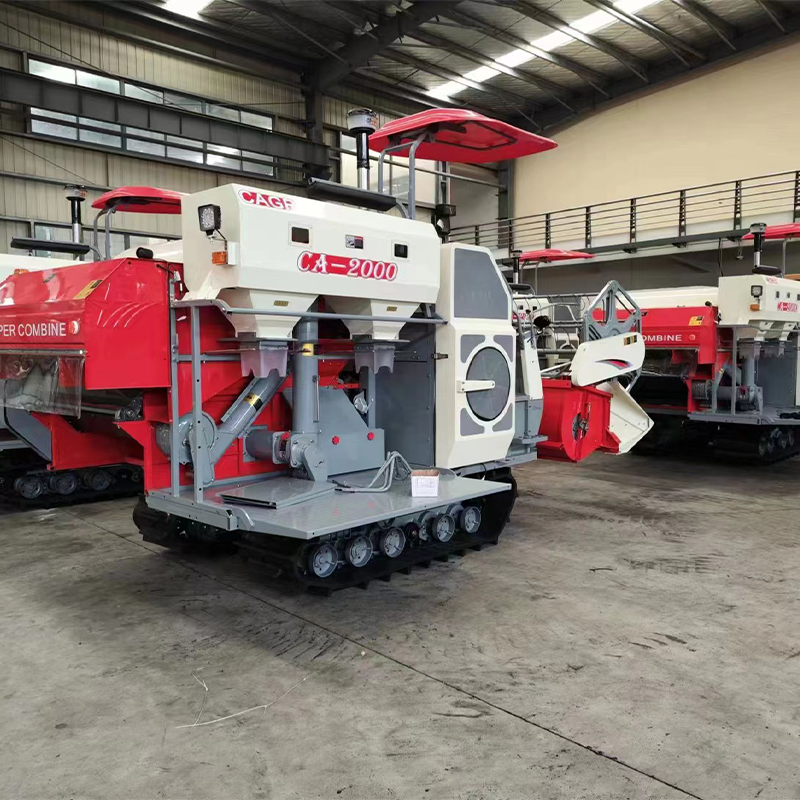

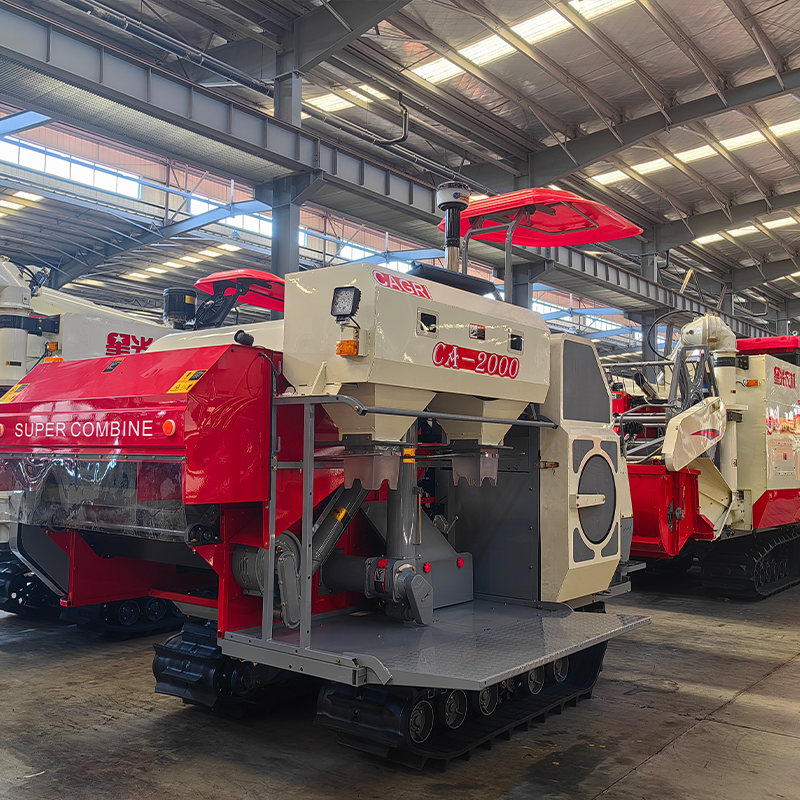

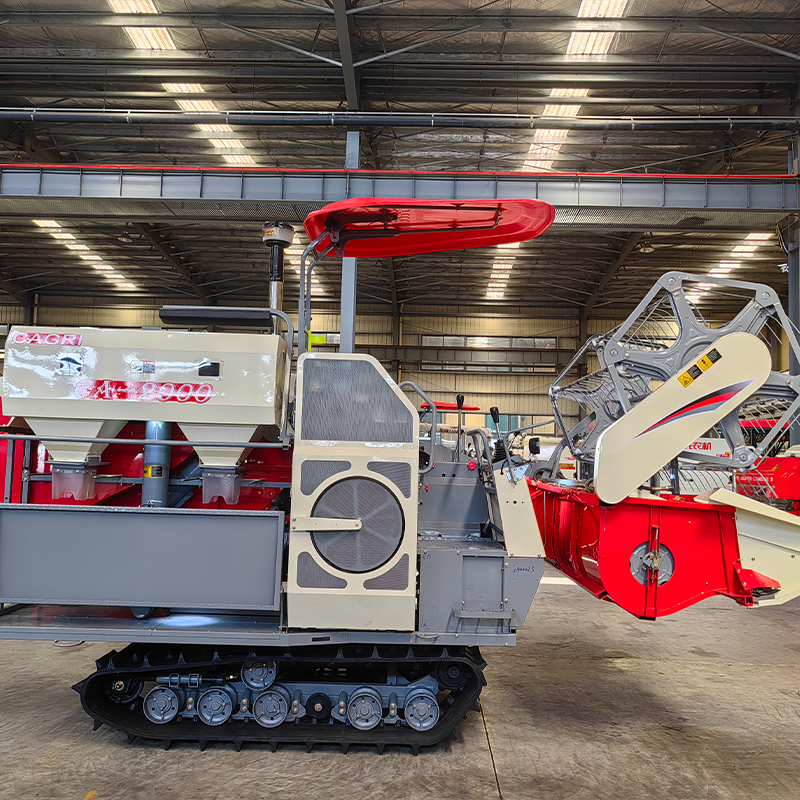

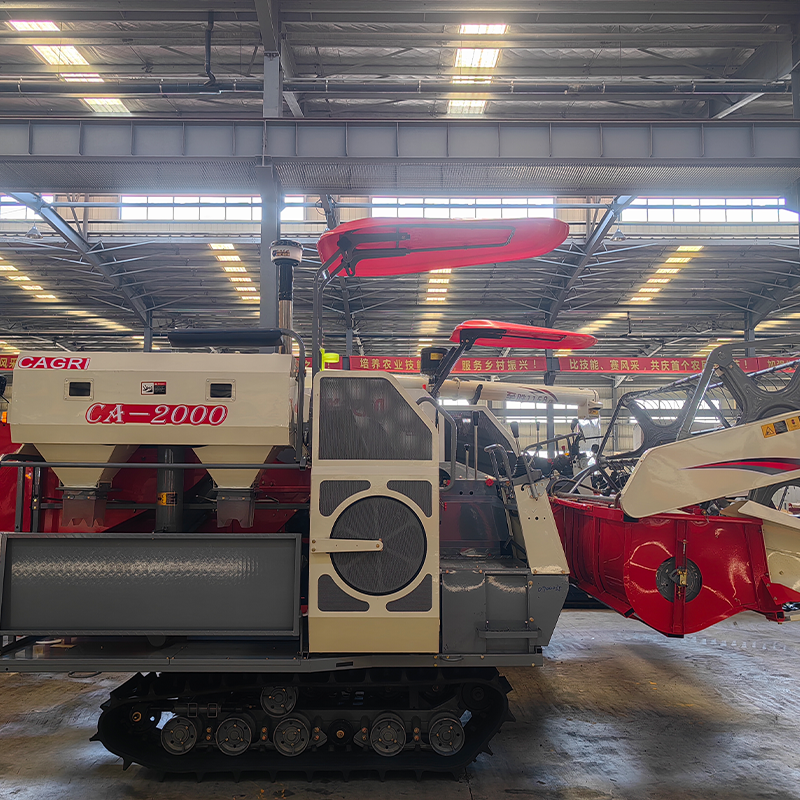

| Product Model | / | 4LL-2.0D Double Drum Combine Harvester | |
| Structure | / | Full feed tracked self-propelled | |
| Engine | Rated Power | hp | 88 |
| Rated speed | r/min | 2400 | |
| Overall Dimension | mm | 4680×2685×2605 | |
| Complete Machine Weight | kg | 2765 | |
| Cutting Width | mm | 2000 | |
| Feeding Capacity | kg/s | 4.0 | |
| Min. Ground Clearance | mm | 265 | |
| Theoretical Work Speed | km/h | 0～6.07 | |
| Work Efficiency | hm2/h | 0.35～0.5 | |
| Fuel Consumption | kg/hm2 | ≤30 | |
| Threshing Drum Size | mm | Φ540×650 + Φ540×1285 | |
| Fan Type | / | Centrifugal | |
| Gauge | mm | 1150 | |
| Rubber Track | mm | 90mm×49×500mm | |
| Gearbox | / | Three-speed gearbox＋45cc HST | |
| Brake Type | / | Wet friction plate type | |
| Chopper Type | / | Rotating blade | |
| Cab Type | / | / | |
| Unloading Type | / | Manual unloading | |
