5 HHL-1 Dryer

1, single-phase residential electricity220V, easy to get electricity;
2,PLC+ touch screen control Schneider contactor thermal overload;
3. Built-in1.2mm stainless steel angle box;
4. Electrophoresis+ plastic spray surface treatment is adopted on the surface of the material;
5, dryer and hot air stove integration, improve the use of heat; a variety of fuel applications (biomass, firewood, coal, oil, etc.)
6, wide adaptability, a machine multi-purpose, can be suitable for rice, wheat, rape, sorghum, corn and other agricultural products drying;
7, with caster design, easy to move.

Availability:

Quantity:



Inquire Add to Basket

Model:
5HHL-1 multifunctional mobile dryer
Brand:
Thinker

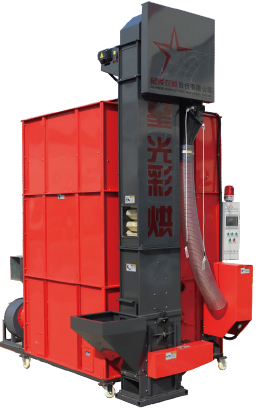

Product Description

Starlight Mobile Grain Dryer adopts advanced lowtemperature batch circulation mixed flow drying technology, lightweight and mobile design, realizing convenience of storage and use, and solving unfavorable factors such as site limitation.

Item			Unit	Specification
operating principle			/	mixed-flow
structural style			/	batch cycle
the weight of the body			kg	825.5
handling capacity	cereal	Minimum~ maximum capacity	kg	1000
		handling capacity	Kg/h	≥500
the required power	freeze-point voltage		V	220
	delivery system motor		kW	0.75
	grain pulling motor		kW	0.06
	exhaust fan motor		kW	0.75
	aggregate		kW	1.56
Built-in standard biomass hot air stove			kW	0.11
performance	valley entry time		min	About 30 (rice)
	Valley exit time		min	About 30(rice)
	drying rate		%/h	0. 6~1.2
	percentage of damage		％	≤0.2
drying part body size (outline size)	overall length		mm	1470(1834)
	overall width		mm	1470(2566.5)
	full lift		mm	2568(3332)
