5HHL-4 multifunctional mobile dryer
Thinker
1、Easy to move, sitead aptability;
2、Heat source and dryer integrated design
3, PLC+ touch screen control,Schneider contactor thermal overload protection;
4. The carriage is equipped with lifting and heightening device, which has large loading capacity and convenient movement;
5. Electrophoresis + spray surface treatment;
6, suitable for rice, wheat, sorghum, corn and other drying;
7. High quality seeds can be dried without turning.
| Item | Unit | Specification | ||
| model name | / | 5HHL-4 multifunctional mobile dryer | ||
| operating principle | / | mixed-flow | ||
| structural style | / | batch cycle | ||
| the weight of the body | kg | 2200 | ||
handling capacity | cereal | Minimum~ maximum capacity | kg | 2000-4000 |
| handing capacity | Kg/h | ≥500 | ||
Outer body size | overall length | mm | 4300 | |
| overall width | mm | 1940 | ||
| full lift | mm | 2480 | ||
Drying power | freeze-point voltage | V | 220 | |
| delivery system motor | kW | 1.5 | ||
| upper auger motor | kW | 0.1 | ||
| grain pulling motor | kW | 0.1 | ||
| lower auger motor | kW | 0.4 | ||
| total | kW | 2.1 | ||
built-in heat source | fuel | / | Biomass/firewood | |
| calorific value | kcal | 4.5 | ||
| power | kW | 1.61 | ||
| performance | valley entry time | min | About 30 (rice) | |
| Valley exit time | min | About 30(rice) | ||
| drying rate | %/h | 0. 5~1.2 | ||
| fragmentation increment | % | ≤0.5 | ||

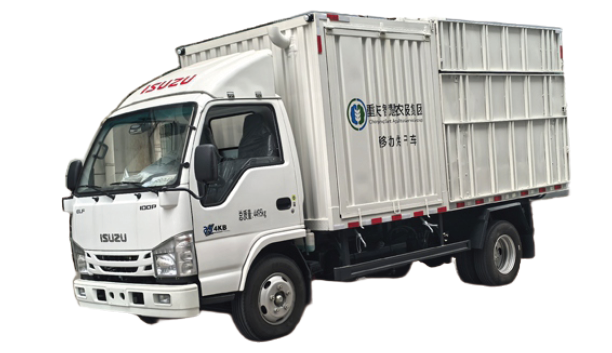

vehicle information | brand | / | Isuzu | |
| chassistype | / | QL1042MVHAY | ||
| enginetype | / | 4KB1-TCC60 | ||
| engine maximum net powerratio | kW | 94 | ||
| chassis conditioningmass | kg | 1890 | ||
| maximum allowable totalmass | Kg | 4495 | ||
| Numberof passengers | place | 2 | ||
| YearMonth ofManufacture | / | 2024/7/18 | ||
| enginerating | kw | 96 | ||
