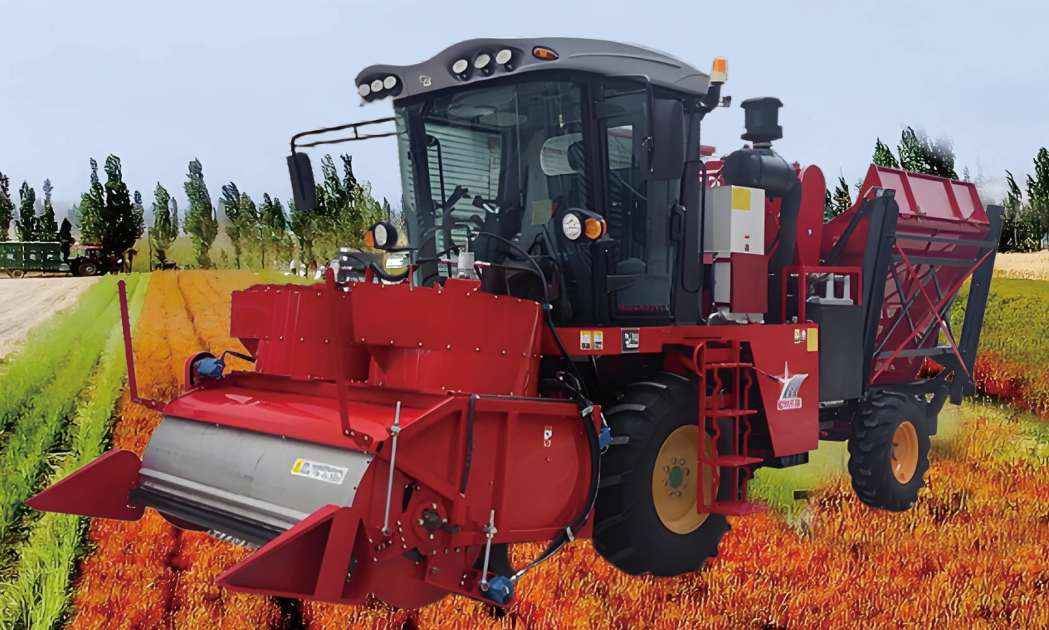

4AZ-2200
Thinker
1.Equipped with a Yuchai engine, it is powerful, more environmental friendly and more economical.
2.Equipped with a electronic control system, multi-link and multi-parameter adjustable, to achieve precise control in the cab, more intelligent.
3.The cabin is spacious, soundproof, well-sealed, offers a wide field of view, and is fitted with zero-gravity leather seats, providing comfortable handling and reducing fatigue.
4.The front drive axle is hydrostatically driven, with strong power.
5.The hydraulic transmission of the whole vehicle is stable, the operation is comfortable, and the operation efficiency is high.
6.Spiral spring-tooth picking header has a high picking rate and low damage rate, which can meet the harvesting of different varieties of peppers.
7.The header profiling device always remains parallel to the ground and automatically adjusts in the face of complex terrain.
8.Optional unloading system with the car, to achieve unloading without stopping, harvesting efficiency doubled.
| Item | Unit | Specification |
| Model | / | 4AZ-2200 |
| Engine | / | Yuchai |
| hp | 140 | |
| Overall Dimension | mm | 7560×2510×3330 |
| Weight | kg | 5700 |
| Theoretical Work Speed | km/h | 0-5.4 |
| Work Efficiency | hm /h | 0.3-0.35 |
| Picking Type | / | spring-tooth |
| Working height | mm | 3500 |
| Collector Tank Capacity | m3 | 4.34 |
| Gauge | mm | 2865 |
| Gearbox Type | / | HST |
| Brake Type | / | Hydraulically assisted |
| Drive axle | / | Hydraulic |
